CFC Tools

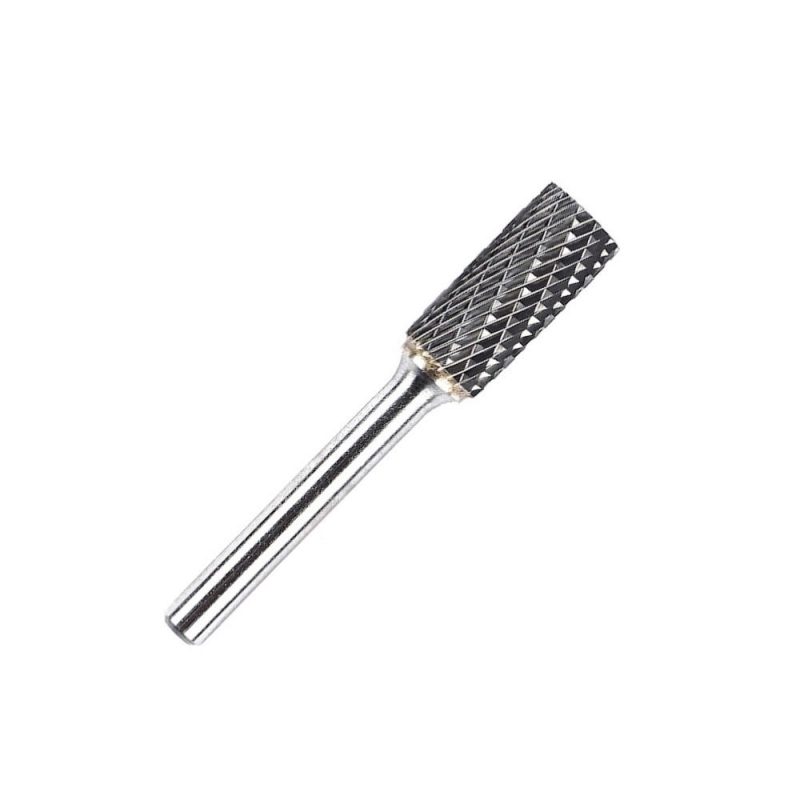

CYLINDRICAL SHAPE

  • CYLINDRICAL SHAPE
  • CYLINDRICAL SHAPE
  • CYLINDRICAL SHAPE

Specifications

  • Material : Tungsten Carbide.
  • According to DIN 8032 with cut conforming to DIN 8033.
  • Universal application.

RANGE

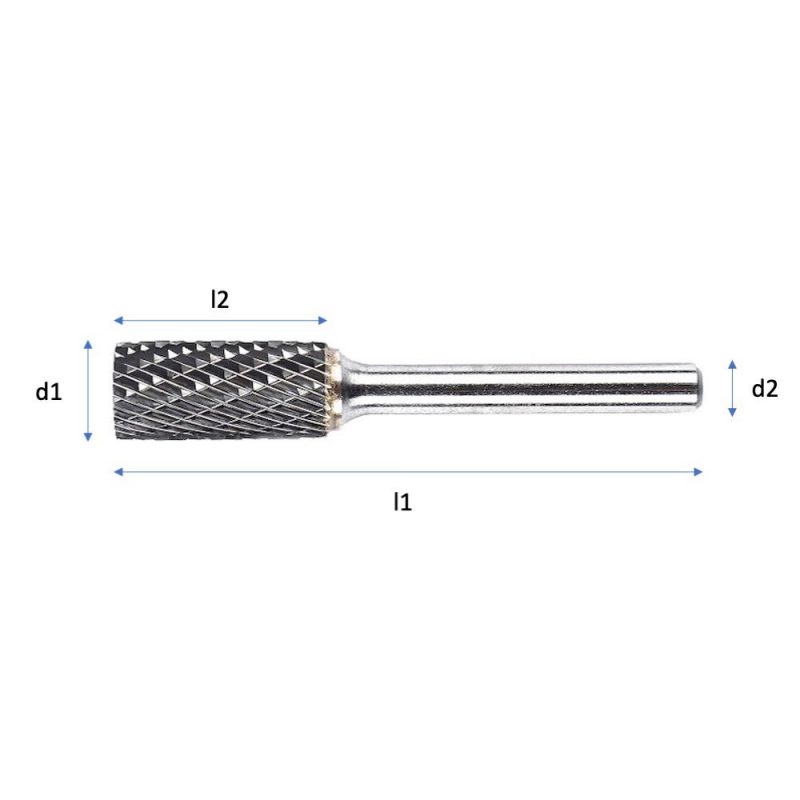

SKUDESCRIPTIONd1(mm)l2(mm)d2(mm)l1(mm)CUTEAN
CTA0312X03DCylindrical Shape Without End Cut312338Double8885454600004
CTA0314X03DCylindrical Shape Without End Cut314338Double8885454600011
CTA0612X03DCylindrical Shape Without End Cut612350Double8885454600028
CTA0616X06DCylindrical Shape Without End Cut616661Double8885454600035
CTA0820X06DCylindrical Shape Without End Cut820665Double8885454600042
CTA1020X06DCylindrical Shape Without End Cut1020665Double8885454600059
CTA1225X06DCylindrical Shape Without End Cut1225670Double8885454600066
