Specifications
- Material : Tungsten Carbide.
- According to DIN 8032 with cut conforming to DIN 8033.
- Universal application.
RANGE

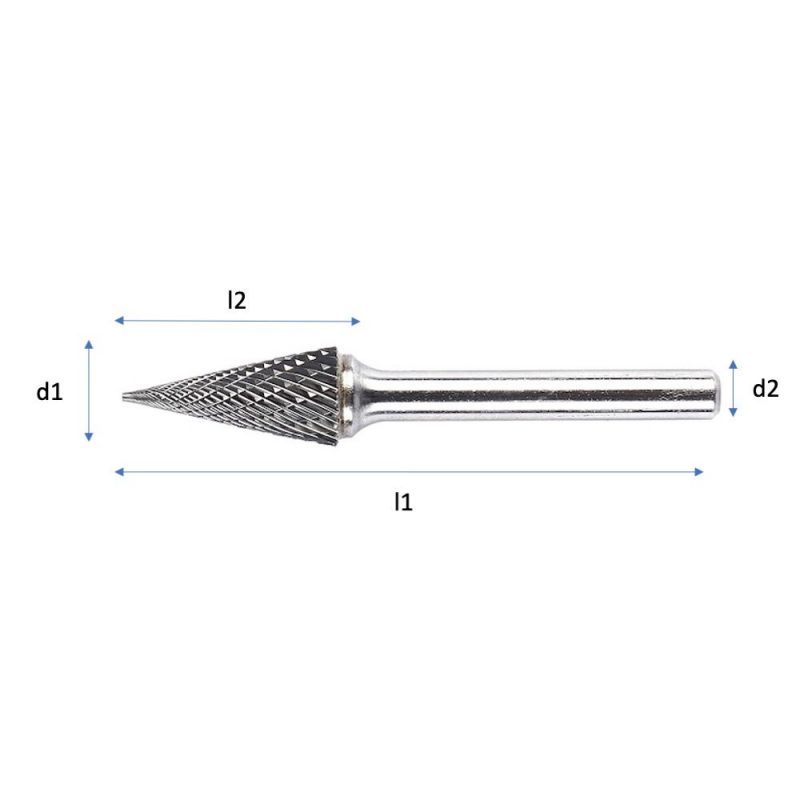

| SKU | Description | d1 (mm) | l2 (mm) | d2 (mm) | l1 (mm) | Cut | Ean |
|---|

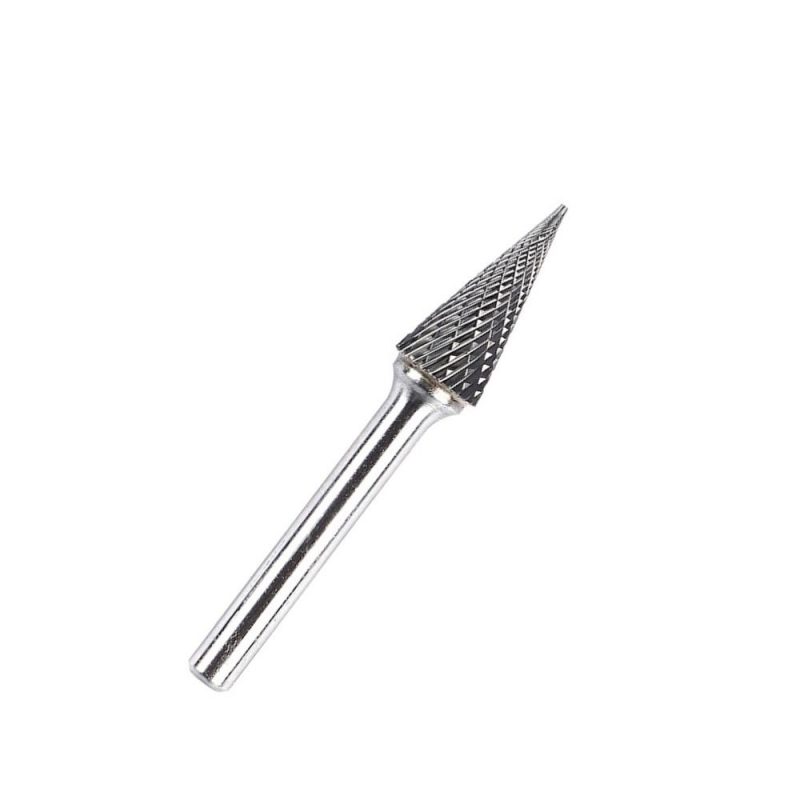

| CTM0312X03D | Conical Pointed Shape | 3 | 12 | 3 | 38 | Double | 8885454600523 |
| CTM0612X03D | Conical Pointed Shape | 6 | 13 | 3 | 50 | Double | 8885454600530 |
| CTM0618X06D | Conical Pointed Shape | 6 | 18 | 6 | 63 | Double | 8885454600547 |
| CTM0820X06D | Conical Pointed Shape | 8 | 20 | 6 | 65 | Double | 8885454600554 |
| CTM1020X06D | Conical Pointed Shape | 10 | 20 | 6 | 65 | Double | 8885454600561 |
| CTM1020X06DL178 | Conical Pointed Shape | 10 | 20 | 6 | 178 | Double | 8885454600790 |
| CTM1225X06D | Conical Pointed Shape | 12 | 25 | 6 | 70 | Double | 8885454600578 |
| CTM1225X06DL178 | Conical Pointed Shape | 12 | 25 | 6 | 178 | Double | 8885454600806 |
